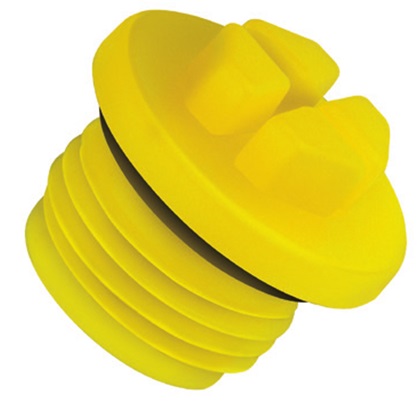

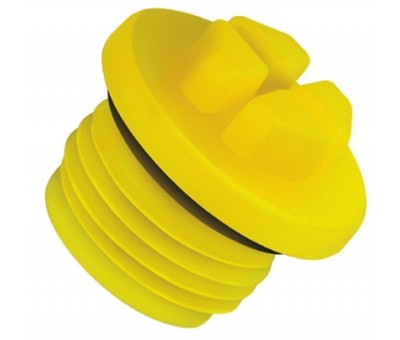

Le bouchon plastique fileté SR 1125 est fourni avec joint torique, pour une adhérence et une étanchéité complète. Exécuté en PEHD jaune, ce modèle de bouchon fileté permet un montage et démontage avec un tournevis ou une clé, avec un outillage électrique ou à la main.
Caractéristiques

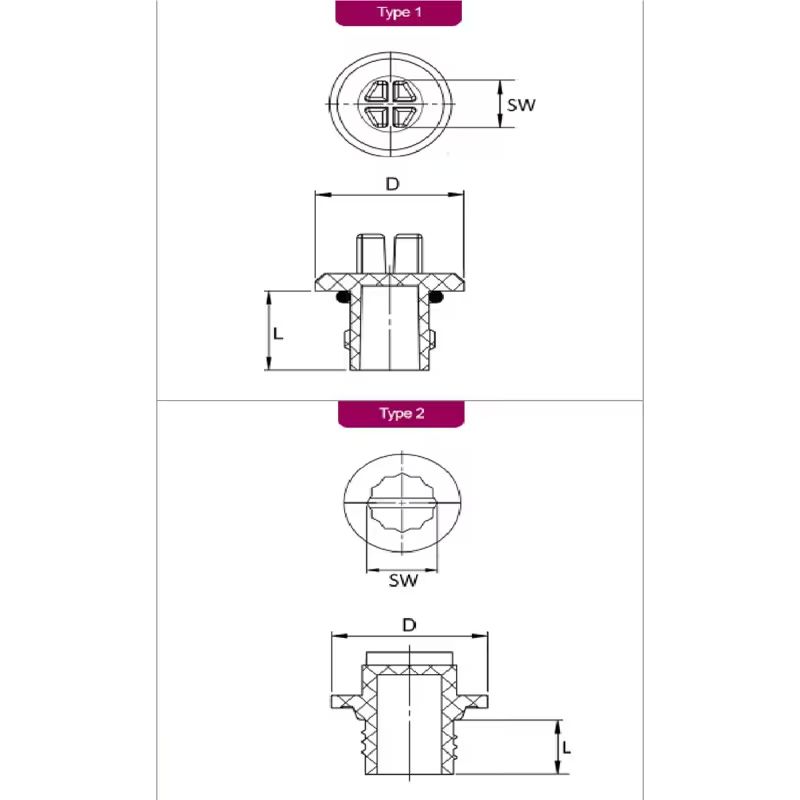

| Part No. | Filet (d1) | D (mm) | H (mm) | h1 (mm) | S (mm) | Filetage |
| 498540 | M16 x 1.5 | 24.0 | 20.4 | 12.0 | 13.0 | Métrique |
| 498541 | M18 x 1.5 | 24.0 | 20.4 | 12.0 | 13.0 | Métrique |
| 498542 | M20 x 1.5 | 26.0 | 20.4 | 12.0 | 15.0 | Métrique |
| 498543 | M24 x 1.5 | 30.0 | 20.4 | 12.0 | 17.0 | Métrique |
| 498544 | M26 x 1.5 | 32.0 | 20.4 | 12.0 | 19.0 | Métrique |
| 498546 | M30 x 1.5 | 38.0 | 20.6 | 12.0 | 22.0 | Métrique |
| 498547 | M32 x 1.5 | 40.0 | 20.6 | 12.0 | 24.0 | Métrique |
| 498548 | M30 x 2.0 | 38.0 | 24.6 | 15.0 | 22.0 | Métrique |
| 498549 | M33 x 2.0 | 40.0 | 24.6 | 15.0 | 24.0 | Métrique |
| 498550 | M36 x 2.0 | 45.0 | 24.6 | 15.0 | 24.0 | Métrique |
| 498551 | M45 x 2.0 | 52.0 | 25.0 | 15.0 | 30.0 | Métrique |
| 498552 | 5⁄8" x 18 | 22.0 | 20.9 | 12.5 | 13.0 | UNF |
| 498553 | 1" x 14 | 31.0 | 22.1 | 13.5 | 17.0 | UNF |
| 498554 | 11⁄16" x 12 | 35.0 | 22.6 | 14.0 | 19.0 | UNF |
| 498555 | 15⁄16" x 12 | 42.0 | 24.0 | 14.0 | 24.0 | UNF |
| 498556 | 1⁄2" x 14 | 27.0 | 21.9 | 13.5 | 15.0 | BSP |
| 498557 | 5⁄8" x 14 | 29.5 | 21.9 | 13.5 | 17.0 | BSP |
| 498558 | 3⁄4" x 14 | 32.0 | 21.9 | 13.5 | 19.0 | BSP |
| 498559 | 7⁄8" x 14 | 37.0 | 21.9 | 13.5 | 22.0 | BSP |
| 498659 | M8 x 1 | 12.5 | 17.0 | 10.0 | 6.0 | Métrique |
| 498660 | M10 x 1 | 14.5 | 17.2 | 10.0 | 7.0 | Métrique |
| 498661 | M12 x 1 | 17.0 | 17.2 | 10.0 | 10.0 | Métrique |
| 498662 | M10 x 1.5 | 14.5 | 19.2 | 12.0 | 7.0 | Métrique |
| 498663 | M12 x 1.5 | 17.0 | 19.2 | 12.0 | 10.0 | Métrique |
| 498664 | M14 x 1.5 | 22.0 | 19.2 | 12.0 | 10.0 | Métrique |
| 498665 | M22 x 1.5 | 28.0 | 20.4 | 12.0 | 15.0 | Métrique |
| 498666 | M36 x 1.5 | 45.0 | 20.6 | 12.0 | 24.0 | Métrique |
| 498667 | M38 x 1.5 | 48.0 | 20.6 | 12.0 | 24.0 | Métrique |
| 498668 | M27 x 2.0 | 33.0 | 24.6 | 15.0 | 19.0 | Métrique |
| 498669 | M42 x 2.0 | 50.0 | 24.6 | 15.0 | 24.0 | Métrique |
| 498670 | M48 x 2.0 | 55.0 | 25.0 | 15.0 | 30.0 | Métrique |
| 498671 | M52 x 2.0 | 60.0 | 25.0 | 15.0 | 7.0 | Métrique |
| 498672 | 3⁄8" x 24 | 14.0 | 17.2 | 10.0 | 7.0 | Métrique |
| 498673 | 7⁄16" x 20 | 16.0 | 19.7 | 12.5 | 10.0 | UNF |
| 498674 | 1⁄2" x 20 | 19.0 | 20.9 | 12.5 | 10.0 | UNF |
| 498675 | 9⁄16" x 18 | 21.0 | 20.9 | 12.5 | 10.0 | UNF |
| 498676 | 3⁄4" x 16 | 27.0 | 21.9 | 13.5 | 13.0 | UNF |
| 498677 | 7⁄8" x 14 | 28.0 | 21.9 | 13.5 | 15.0 | UNF |
| 498678 | 13⁄16" x 12 | 38.0 | 22.6 | 14.0 | 22.0 | UNF |
| 498679 | 15⁄8" x 12 | 50.0 | 24.0 | 14.0 | 24.0 | UNF |
| 498680 | 17⁄8" x 12 | 55.0 | 24.0 | 14.0 | 30.0 | UNF |
| 498681 | 1⁄8" x 28 | 16.0 | 17.2 | 10.0 | 7.0 | BSP |
| 498682 | 1⁄4" x 19 | 19.0 | 19.7 | 12.5 | 10.0 | BSP |
| 498683 | 3⁄8" x 19 | 22.0 | 20.9 | 12.5 | 13.0 | BSP |
| 498684 | 1" x 11 | 40.0 | 23.6 | 15.0 | 24.0 | BSP |
| 498685 | 11⁄4" x 11 | 50.0 | 23.6 | 15.0 | 24.0 | BSP |
| 498686 | 11⁄2" x 11 | 56.0 | 25.0 | 15.0 | 30.0 | BSP |
| 498687 | 13⁄4" x 11 | 62.0 | 25.0 | 15.0 | 36.0 | BSP |
| 498688 | 2" x 11 | 68.0 | 25.0 | 15.0 | 36.0 | BSP |
